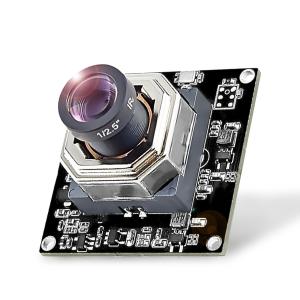

IMX415 8MP 30FPS AF 4K HD Distortion-free USB Camera Module for Document Scanning

Brand Name : HAOZHOU / OEM

Model Number : HZ-IMX415AF S1.0

Certification : CE / RoHS / FCC / ISO

Place of Origin : Shenzhen,China

MOQ : 1

Price : 35~45USD

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypay and others

Supply Ability : 500000 pieces/month

Delivery Time : 7 - 15 Work Days

Packaging Details : Tray+Anti-static bag in carton box

Mounting Type : USB plug and play

Description : Usb camera module

Image Sensor : 1/2.8" imx415 Cmos image sensor

High frame rate : 3840*2160/30fps

FOV : 95-140° (Optional)

Focusing : Autofocus

Image color : RGB

compression format : YUV and MJPEG

Dynamis range : 82dB

OS : Win XP\Vista 7 8 10 \Linux \os with UVC driver

Applications : Surveillance cameras, FA cameras, Industrial cameras

Contact Now

Factory price IMX415 8MP Autofocus UVC USB Camera Module 4K RGB Image sensor Wide Angle l Industrial Camera Modules

The IMX415 sensor combines ultra-high resolution, advanced features and versatile performance to provide powerful imaging solutions for developers and manufacturers in the professional video, high-end security and advanced industrial fields. Its features support the creation of complex vision systems that can capture and analyze detailed high-definition images to meet the needs of the most challenging 4K imaging applications. The IMX415 is a 1/2.8-inch stacked CMOS image sensor with 4K resolution. It uses a square pixel array with an effective pixel count of 8.46 million. The chip is powered by a triple power supply: analog 2.9V, digital 1.1V and interface 1.8V for low power consumption. High sensitivity, low dark current and no smear are achieved by using R, G, B primary color mosaic filters, and the ample pixel size of 1.45 square microns, combined with the latest low-noise pixel technology, improves low-light performance, making it an ideal choice for high-end 4K security cameras. The image sensor is ideal for security cameras in various surveillance applications, such as anti-theft, disaster alarms, traffic monitoring systems or commercial complexes.

1. Sensor:Sony IMX415 CMOS

2. Interface USB,UVC compliant, Plug & Play

3. Product size: 38*38mm

4. 95-140° Wide angle,Customizable lens

5. 4K (8MP, 3840x2160) resolution6. 30FPS high frame rate at full resolution
7. superior low-light performance
8. mic: Customizable
9.Application:Security Cameras, Traffic Monitoring Systems, Surveillance, Smart City, Disaster Monitoring Alert

   Product number
 HZ-IMX415AF S1.0

 Product program
 CMOSM

 CMOS
 1/2.8inch IMX415

 Image pixels
 1.45um

 Image Format
 YUV/MJPG

 Dynamis range
 82dB

 Image color
 RGB

 MIC
 OEM

 Type of Focusing
 Auto focus

 Exposure
 Auto Exposure/Manual Exposure

 Lens
 f/on.4.3mm

 Focus raege
 default 600mm(It can be adjusted according to the shooting distance.)

 FOV
 95°-140° OEM

 weight
 150g

 camera control
 Saturation/Contrast/Sharpness

 white balance
 auto/manually/Cr,Cb:Requirements -12≤average≤+12

 Applicable equipment
 Industrial equipment, media equipment, network video conference, surveillance video POS machine, medical equipment, smart home,
display stand, self-service equipment, Android equipment, advertising machine, industrial computer, ATM teller machine and other
equipment.

 Operating Voltage
 5V

 Working current
 160-260mA

 work rate
 2W

 Operating temperature
 -10℃~+70℃

 Drivers Temperature
 Free drive

 Resulution
 Resulution
 MJPG
 YUY2

 3840*2160
 30fps
 1fps

 2592*1944
 30fps
 1fps

 2688*1512
 30fps
 1fps

 2048*1536
 30fps
 3fps

 1920*1080
 30fps
 5fps

 1600*1200
 30fps
 5fps

 requested systems
 WinXP/Win7/Win8/Win10/Wind/MAC OSX captin 10.11.4 and Linux/Android

 Fixed Pattern Noise
 650±10nm





Product Tags:

30fps usb camera module

4k usb camera module

IMX415 8MP 30FPS AF 4K HD Distortion-free USB Camera Module for Document Scanning Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Shenzhen City Haozhou Technology Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Product number	HZ-IMX415AF S1.0
Product program	CMOSM
CMOS	1/2.8inch IMX415
Image pixels	1.45um
Image Format	YUV/MJPG
Dynamis range	82dB
Image color	RGB
MIC	OEM
Type of Focusing	Auto focus
Exposure	Auto Exposure/Manual Exposure
Lens	f/on.4.3mm
Focus raege	default 600mm(It can be adjusted according to the shooting distance.)
FOV	95°-140° OEM
weight	150g
camera control	Saturation/Contrast/Sharpness
white balance	auto/manually/Cr,Cb:Requirements -12≤average≤+12
Applicable equipment	Industrial equipment, media equipment, network video conference, surveillance video POS machine, medical equipment, smart home, display stand, self-service equipment, Android equipment, advertising machine, industrial computer, ATM teller machine and other equipment.
Operating Voltage	5V
Working current	160-260mA
work rate	2W
Operating temperature	-10℃~+70℃
Drivers Temperature	Free drive
Resulution	Resulution	MJPG	YUY2
	3840*2160	30fps	1fps
	2592*1944	30fps	1fps
	2688*1512	30fps	1fps
	2048*1536	30fps	3fps
	1920*1080	30fps	5fps
	1600*1200	30fps	5fps
requested systems	WinXP/Win7/Win8/Win10/Wind/MAC OSX captin 10.11.4 and Linux/Android
Fixed Pattern Noise	650±10nm
